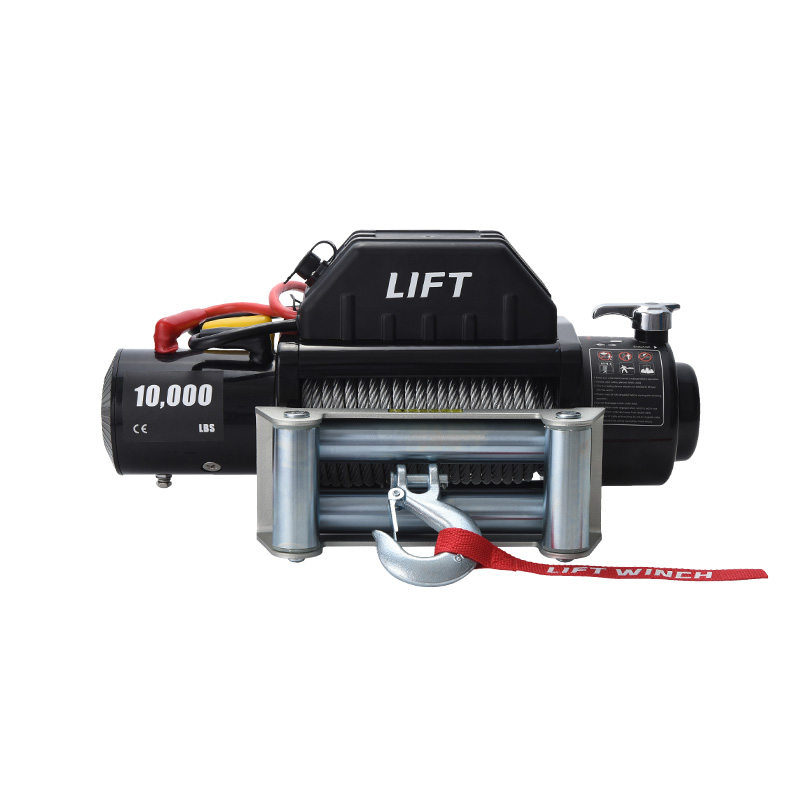

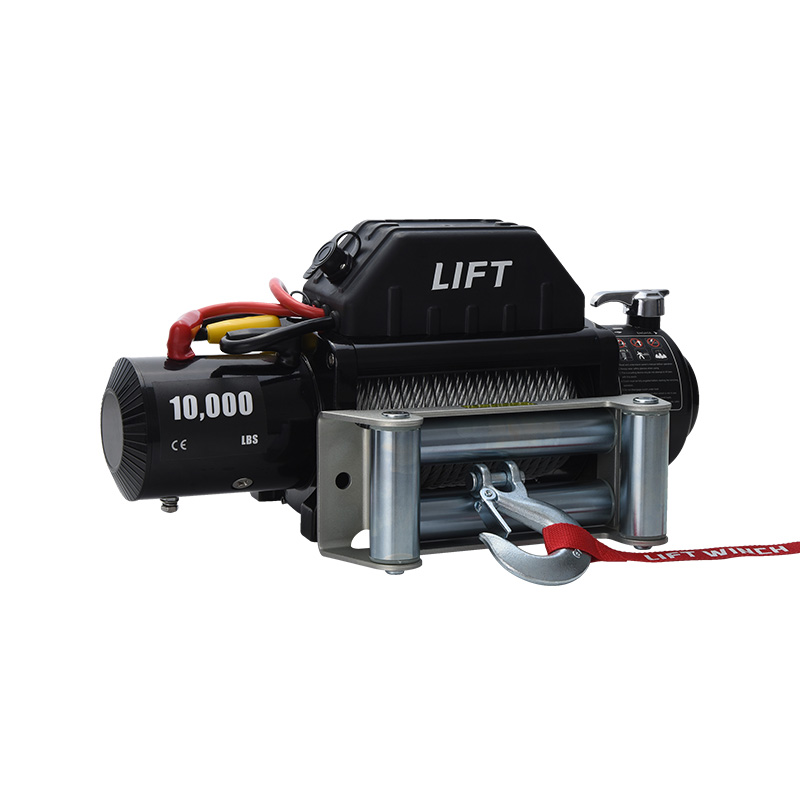

SIC10000T Efficient Motor Electric 4x4 JEEP&Truck Off-Road Winch With Integrated Control Box

With a robust and efficient motor at its core, the SIC10000T winch delivers outstanding pulling power to help you out of sticky situations, whether you're stuck in mud, navigating rocky terrain, or facing steep inclines. Its high-torque capabilities ensure smooth and reliable operation, making it a reliable asset during your outdoor escapades.
Equipped with cutting-edge technology, this winch boasts advanced safety features, including automatic load-holding brakes and a remote control system, ensuring optimal control and safety during winching operations. The intuitive control panel allows for precise adjustments, while the wireless remote allows you to operate the winch from a safe distance, adding convenience to your off-road experience.
Crafted from premium materials, the SIC10000T winch is built to withstand the harshest conditions. Its rugged construction and weather-resistant design ensure longevity, providing you with the confidence to take on extreme environments without hesitation.
Easy to install and compatible with a wide range of 4x4 JEEPs and trucks, this off-road winch is the perfect addition to any adventure enthusiast's toolkit.
Get A Quote
  • Parameter
  • Contact Us
  • SPECIFICATIONS:
    Rated line pull 10000lbs (4536 kgs) single line
    Motor:Series wound Output:4.0kW/5.5hp
    Brake Mechanical Spring
    Geartrain Full steel
    Gear reduction ratio 148.2:1
    Clutch Keyway Cam
    Cable(Dia×L) Ø21/64″×94’(Ø8.3mm×24m)
    Drum size(Dia×L) Ø2.6″×8.8″(Ø64mm×224mm)
    Mounting bolt pattern 254mm x 114.3mm
    Net weight 78.3lbs/35.5kgs

    DIMENSIONS:
    12V DC PERFORMANCE SPECS(first layer)
    Line Pull Line Speed Motor Pull by layer
    Lbs.(kgs) Ft/min.(M/min.) Current layer/Lbs.(kgs)
    0 35.4(10.8) 75amps 2/7930(3596)
    2000(970) 14.8(4.5) 180amps 3/6566(2977)
    6000 (2721) 9.5(2.9) 290amps 4/5604(2541)
    8000(3628) 7.87(2.4) 360amps
    10000(4536) 5.25(1.6) 420amps
