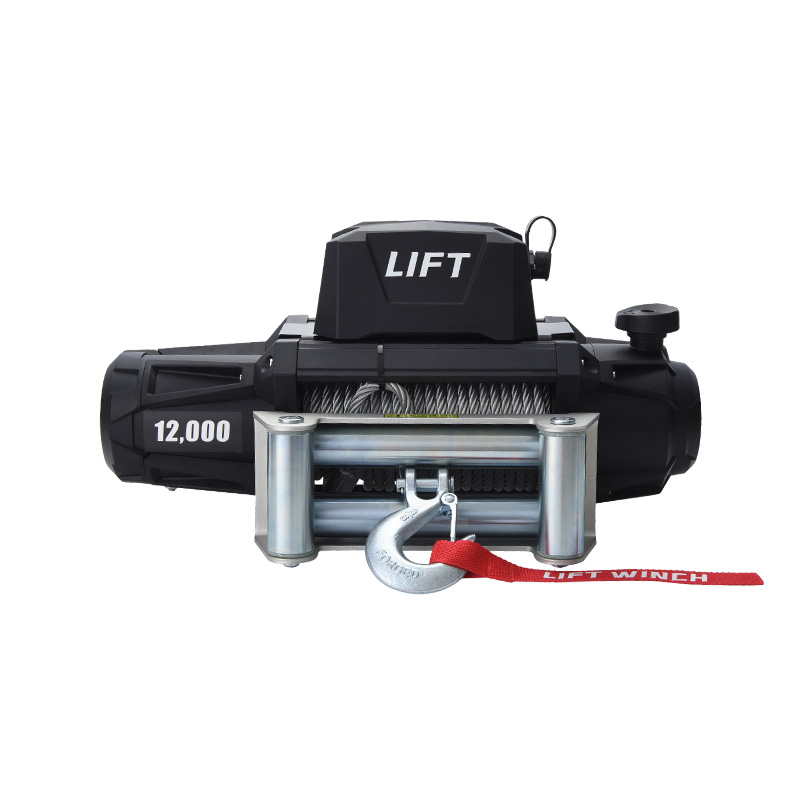

ZC12000 12V Powerful Torque Output Electric 4x4 JEEP&Truck Off-Road Winch

The ZC12000 12V Powerful torque output electric 4x4 Truck off-road winch is a high-performance tool designed for rugged off-road expeditions. This winch is capable of pulling up to 12,000 lbs - an impressive capacity that ensures you can recover your vehicle even in extreme situations. Its high-torque output, powered by a 12V electric motor, ensures maximum pulling power and faster line speed.
The winch features a strong and durable steel cable, which provides exceptional tensile strength in all conditions. In addition to its strength, its weather-sealed solenoid and remote control are designed to withstand severe weather conditions, making the ZC12000 an ideal winch for your 4x4 vehicle, regardless of the terrain or weather.
Its planetary gear train and automatic brake system ensure a smooth and efficient operation, allowing for a secure grip and precise control. Also, its free spooling clutch allows fast rope deployment, which is a key feature in emergency scenarios. With the inclusion of mounting materials and relevant cables, the ZC12000 12V Powerful Torque output electric 4x4 Truck off-road winch offers you unrivalled pulling power in a user-friendly package.
Get A Quote
  • Parameter
  • Contact Us
  • SPECIFICATIONS:
    Rated line pull 12000lbs (5443 kgs) single line
    Motor:Series wound Output:4.8W/6.6hp
    Brake Automatic Ratchet
    Geartrain Full steel
    Gear reduction ratio 218.4:1
    Clutch Keyway Cam
    Cable(Dia×L) Ø21/64″×94’(Ø8.3mm×24m)
    Drum size(Dia×L) Ø2.6″×8.8″(Ø64mm×224mm)
    Mounting bolt pattern 254mm x 114.3mm
    Net weight 78.3lbs/35.5kgs

    DIMENSIONS:
    12V DC PERFORMANCE SPECS(first layer)
    Line Pull Line Speed Motor Pull by layer
    Lbs.(kgs) Ft/min.(M/min.) Current layer/Lbs.(kgs)
    0 22.5(6.85) 70amps 2/9210(4178)
    4000(1814) 11.8(3.6) 158amps 3/8030(3642)
    6000 (2722) 9.8(3.0) 231amps 4/6894(3127)
    8000(3629) 8.2(2.5) 302amps
    10000(4536) 6.2(1.9) 370amps
    12000(5443) 4.5(1.38) 420amps
